About ActCAD CAD Software

ActCAD is a 2D Drafting and 3D Modeling CAD software meant for Engineers, Architects and other technical consultants. ActCAD is a native DWG & DXF CAD software to create and edit drawings. ActCAD uses IntelliCAD engine, Open Design Alliance DWG/DXF Libraries, ACIS 3D Modeling Kernel and many other Technologies. In-addition, ActCAD has many add-on commands, features and other Productivity Tools. ActCAD CAD Software includes many other tools like Block Libraries (in the domains of Civil, Mechanical, Electrical, Architectural, Structural, P &IDs etc.), Batch file converter, Units converter, PDF to DXF Converter, Image to DXF converter, LH Sections and many other productive tools. ActCAD supports many other file formats like dgn, STL, OBJ, 2D PDF, 3D PDF, SVG etc. All dwg/dxf versions from very old R2.5 to latest 2018 are supported.

ActCAD interface is carefully designed for easy selection of commands without much difficulty. The interface and commands are very familiar for easy migration from any other CAD Software. ActCAD has complete range of 2D Drafting & 3D Modeling tools along with editing options. Artisan Render is also included in ActCAD at no extra cost to create high quality renderings. ActCAD can be operated in both modern Ribbon Style Interface and Classic Drop Down menu Styles. The interface, aliases and commands can be completely customized as per your requirements. Unlimited work spaces are supported inside ActCAD.

Top Reasons to Choose ActCAD CAD Software

Economical : Very Low Life-time Price
No Special Learning needed : Familiar interface, commands & Icons
Best Performance : True power of 64bit & Multi-threading
Artisan 3D Renderer : Create Photo-realistic
ActCAD Converter : Batch Auditing & File Conversions
Native DWG & DXF Support : All Versions
PDF Support : 3D PDF Export, 2D PDF Import & Export
Raster to Vector : Image to DXF Converter
Block Library : Over 5000 Blocks included (your blocks also can be added)
Express Tools & Add-on Features
Fully Loaded : Almost close to other Expensive CAD Software
Many File Formats : DWG, DXF, DGN, DWF, SVG, PDF, OBJ, Images etc.

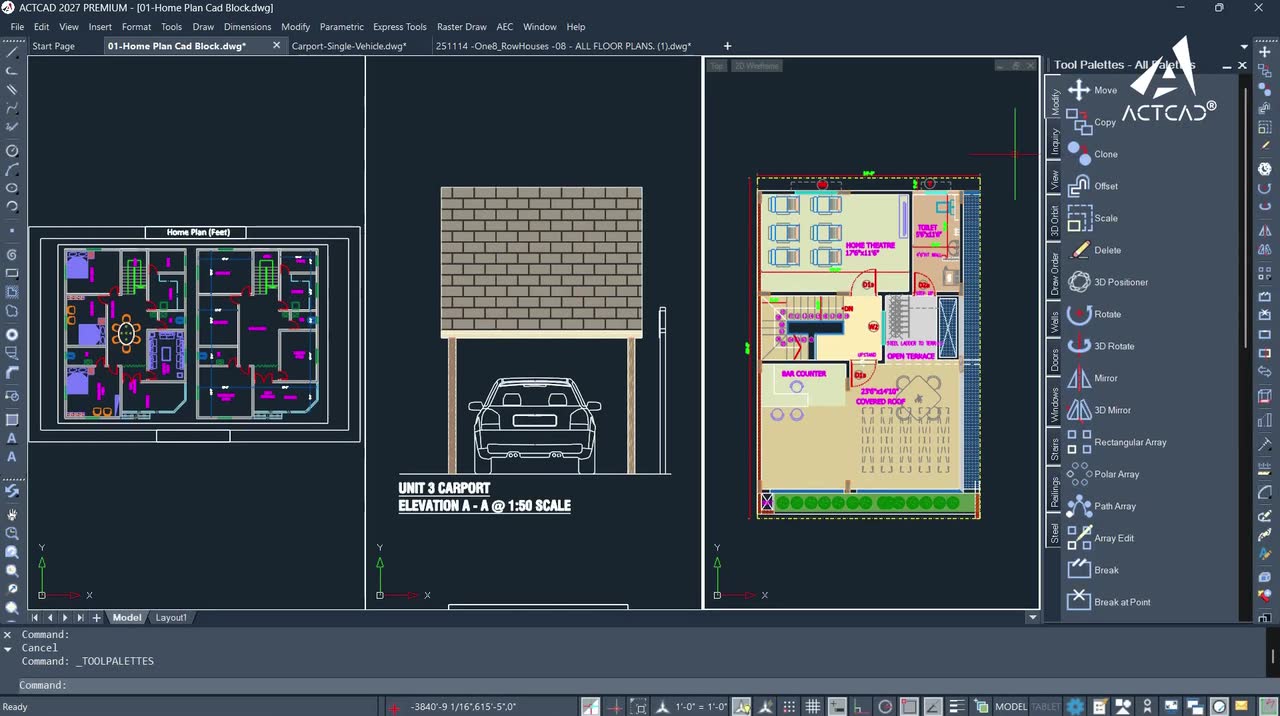

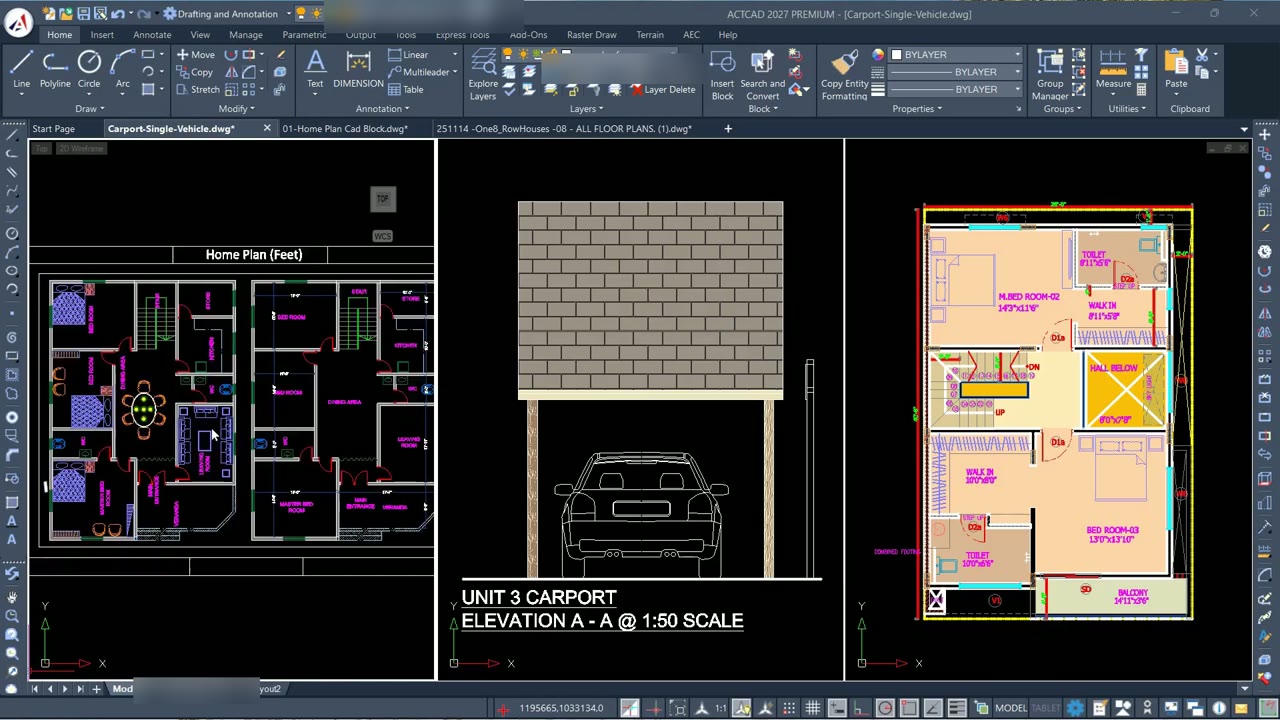

ActCAD 2019 Video (IntelliCAD 8.4b)

ActCAD 2019 Highlights

Perpetual Licenses

ActCAD is available at very low price with permanent validity of licenses. No need to pay annual subscriptions. Upgrade to future version is optional. Try, Believe & Buy only if satisfied.

Many Add-on Features

ActCAD has many add-on features like LH Sections creation, Units converter, Drawings Auditor, Batch file converter, Attributes extractor, Block Library with over 5000 symbols etc.

Aritisan Renderer

ActCAD is now available with Artisan Professional Rendering package at no extra cost. Photo-realistic rendering, 360° viewing, lights, materials etc. available.

Free Technical Support

ActCAD offers free technical support to all its users, no need to buy any Support packs. Submit support tickets directly from ActCAD or on Support Page. Queries will be replied either on same or next working day.

Self License Transfer

ActCAD allows License Transfer from one computer to another using simple command over Internet. There is no limit on number of transfers and number of computers. One license can be floated between multiple computers.

API Customization

ActCAD users can develop their custom programs to work inside ActCAD using .NET, SDS, LISP, DCL and C++ languages. API kit comes with many sample programs and solutions. Free support not applicable on Customization tools.

PDF/Image to DXF Converter

You can open any vector PDF file directly and edit the entities in ActCAD. Raster images also can be converted directly to DXF in ActCAD.

Block Library

ActCAD comes with a Block Library with over 5000 symbols in Civil, Mechanical, Electrical, Architectural, Structural and other domains. Double click on any symbol and insert into your drawing.

No Learning Curve

ActCAD is easy to learn and use. ActCAD incorporates a user interface, commands, icons and shortcuts similar to many other CAD programs.

ActCAD Latest Updates

News Articles

New Clients as on 22-May-2019

Σπυρίδων Αλεξάκης
Agnieszka Czuj
ŠTEFULJ-MS d.o.o.
Viktor Kecskemeti
EL-TEK di Ing. Stefano Polledro
Koelzer
NPSE Automation Pvt. Ltd.
ΓΙΩΡΓΟΣ ΣΤΑΘΟΠΟΥΛΟΣ
Loknath Engineering
G K Services Consultants And Associates
Geolevel d.o.o.
Voigt
Bogdan-George Dicu
A-1 Electrical
Chris Lueck

Quick Announcements

We sincerely thank National Environmental Engineering Research Institute (NEERI), India for choosing ActCAD Professional software (Dt.: 21-May-2019)
We are glad to appoint M/s.ErgoCAD, Athens as our Exclusive Distributor in Greece, Cyprus and few other countries in Europe. (Dt.: 14-May-2019)
A 1964 established Armbuster AV music company, USA chose ActCAD Professional software for their projects. We sincerely thank them. (Dt.: 30-Apr-2019)
ActCAD 2020 Professional will be released in May 2019 based on IntelliCAD 9.1. Buy 2019 version now and get free upgrade to 2020. (Dt.: 28-Apr-2019)
ActCAD has launched new PDF ot DXF Converter based on FlySDK. This module is available in all our CAD solutions free of cost. (Dt.: 25-Apr-2019)

What's New in ActCAD 2019?

IntelliCAD 8.4b & ODA 4.2 Libraries
Artisan Professional 3D Rendering Module
All New Interface, Icons and Toolbars
New Hatch Dialog with Gradient Support
New REFEDIT Dialog to select Nested Blocks
New Select Similar, Burst, Multi-leader Commands
New FIELD Dialog with several options
Export 3D PDF to view 3D data in free PDF readers
Maximize & Minimize Viewports
Added eTransmit Feature
Added Drawing Tabs Option
Added File Search Option in File Open
Improved performance to Create & Edit Blocks
Improved ZOOM and PAN performance
Many new commands like AIDIMFILPARROW, TCASE, TEXTFIT, TJUST, DIM etc.
New high resolution PDF Printer with Gradient Hatch Print support
New LHSECTIONS command with 1 click Drawing creation from CSV data
New GATTE Command to edit Group Attributes
New Express Tools Menu & Ribbon Tab
ActCAD Help & PDF manual Thoroughly Revised
ActCAD Quick Start Guide
New Startup Dialog with many action Buttons

ActCAD Testimonials

Marin Zuric, USA

In General it is an equivalent alternative for AutoCAD. it is light, reliable and satisfy the needs.The software is small no need for heavy installation.

Mariusz Ostrowski, Poland

Its innovative product on ITC IntelliCAD Technology engine 8.4a for CAD, civil engineers, designer. The program offers the same functions as much more expensive products.

Dinkar Saxena, India

A good product... with ease of operation with excellent customer support. Value for money Layout and commands are similar to AUTOCAD thus learning curve is short.

Norman Gonsalves, USA

This software has excellent drafting functionality and compatibility with AutoCAD file formats. Its perpetual licensing and license transfer capability make it an excellent

Years

Countries

16287

Happy Users

64983

Downloads

Add-on Features of ActCAD

Open PDF and edit natively in ActCAD
Image to DXF Converter
Block Library with over 5000 Symbols
Import PSD Point Cloud Data (Binary & ASCII)
ActCAD DWG - DXF - DGN Converter
Drawings Auditor in Batch Mode
Extract Block Attributes to Excel
LH Sections Drawing Creation
Artisan Professional 3D Renderer
Units Converter

Coming soon in ActCAD 2020

Latest IntelliCAD 9.1 Engine
Native support of 2018 DWG & DXF Files
All new PDF to DXF Converter
Introducing Tool Palettes
Sysvar Manager directly inside ActCAD
Attach Digital Signature to DWG file & Validate it
Clickable keywords in Command prompt
New in-place Block Editor
Import .pcd Point Cloud Data (both ASCII & Binary)
New MOCORO Command (Move, Copy & Rotate) and many more

IntelliCAD 8.4b Engine with many add-ons

Optimized Graphics Technology for smooth and fast performance

64bit version supports multi-threading and multi-core processing
