How to Use SuperHatch in ACTCAD

Superhatch in ACTCAD

Superhatch is a powerful feature in ACTCAD that allows users to create complex hatch patterns using images, blocks, and other entities. This feature provides greater flexibility compared to standard hatching options.

Key Benefits of Superhatch:

• Allows hatching with Images, Blocks,Xref,Wipeout
• Supports seamless pattern creation.
• Enables custom hatch designs for unique project requirements.

Steps to Use Superhatch in ACTCAD:

1. Open the Superhatch Command

Type SUPERHATCH in the command bar and press Enter.

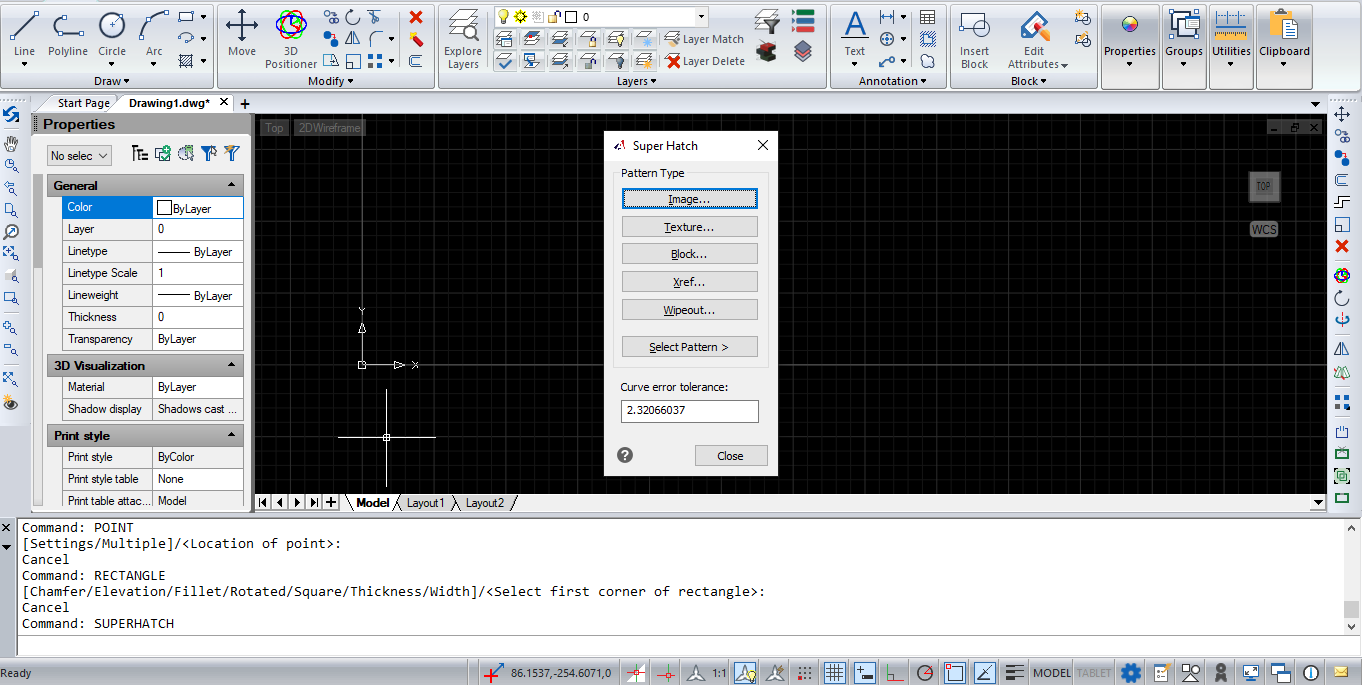

2. Select the Hatch Type

Choose from different hatching options such as an image, block, or other entities.

3. Define the Hatch Pattern

• If you choose an image option, browse and select the required image file.

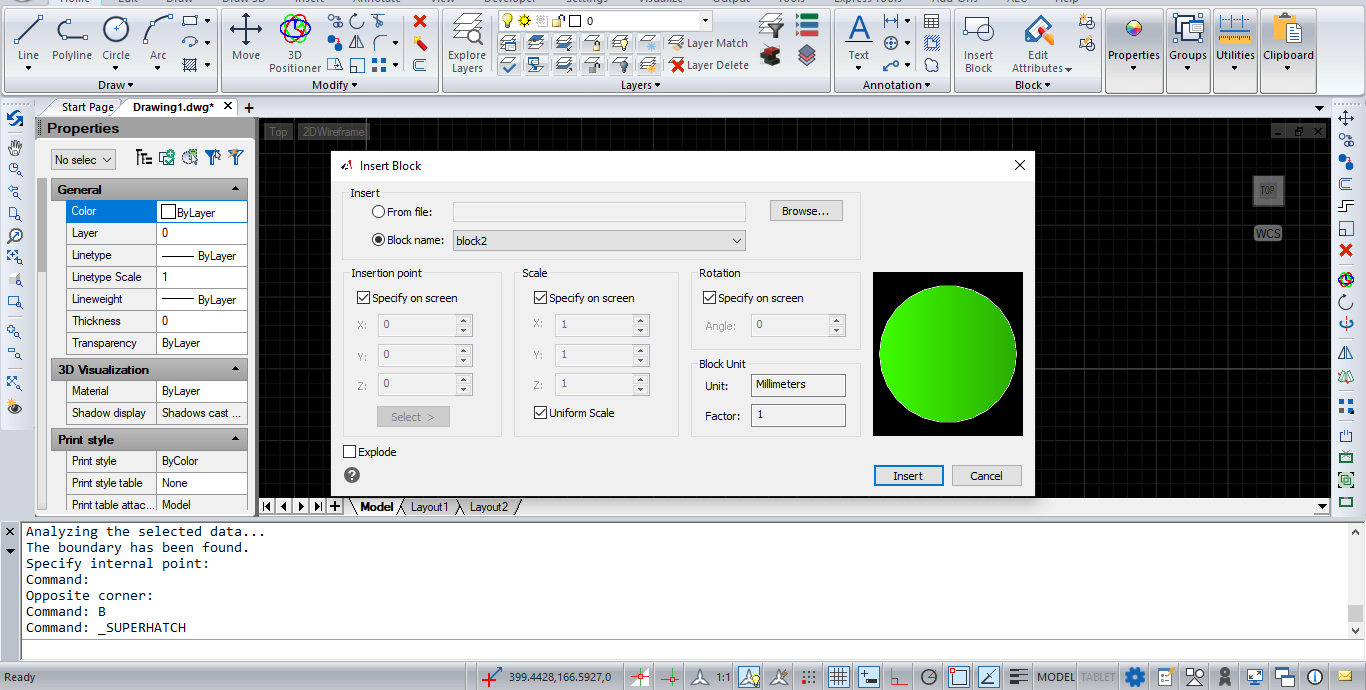

• If you choose an block option, specify the block from the available list.

4. Adjust Scale and Rotation

Set the appropriate scale and rotation to ensure the hatch pattern fits your drawing requirements.

5. Specify the Hatch Boundary

pick the internal point in the closed area where you want to apply the superhatch.

press Enter.

Conclusion:

Superhatch in ACTCAD is an excellent tool for enhancing the appearance of drawings by incorporating customized hatching patterns. It is particularly useful for architectural, civil, and mechanical design projects where unique hatch patterns are required.
